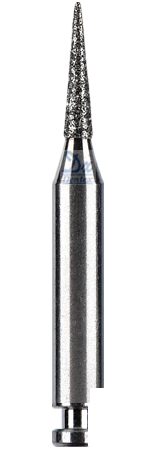

Diamond Burs - RA Standard
Dx Order No. :
W284H
| Aplication |
 |
 |
| Grit |
 |
| Type | RA |
| Shape | Pointed cone |
| Color | without ring |
| Ref. No. | W852/014 |
| ISO No. | 806 204 164 524 014 |
| Type ( Ø 1/10 mm ) | 014 |
| Head length ( mm ) | 6.0 mm |
| Shank ( mm ) | Ø 2.35 mm |
| Shank length ( mm ) | 22 mm |
| Maximum speed | 40,000 RPM |
| Packing unit | 5 |
|
Medium ( M ) | 91 ~ 126 μm |
 |
Coarse ( C ) | 107 ~ 151 μm |
 |
Super Coarse ( SC ) | 151~181 μm |
 |
Fine ( F ) | 40 ~ 60 μm |
 |
Extra Fine ( XF ) | 20 ~ 30 μm |
 |
Medium ( M ) | 91 ~ 126 μm |
 |
Coarse ( C ) | 107 ~ 151 μm |
 |
Fine ( F ) | 40 ~ 60 μm |
