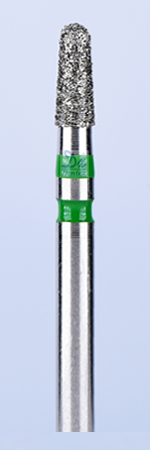

Zirconia Diamond Burs - FG Standard


Dx Order No. :

CZ246F


Aplication
Grit
Type Zirconia FG Standard
ShapeRound end taper
Color green & green ring
Ref. No.CZ849/016
ISO No.806 314 196 534 016
Type ( Ø 1/10 mm )016
Head length ( mm )4.0 mm
Shank ( mm )Ø 1.60 mm
Shank length ( mm )19 mm
Maximum speed200,000 RPM
Packing unit5

Medium ( M ) 91 ~ 126 μm
Coarse ( C ) 107 ~ 151 μm
Super Coarse ( SC ) 151~181 μm
Fine ( F ) 40 ~ 60 μm
Extra Fine ( XF ) 20 ~ 30 μm
Medium ( M ) 91 ~ 126 μm
Coarse ( C ) 107 ~ 151 μm
Fine ( F )  40 ~ 60 μm
